Productdetails:
|
Levensduur (uren): | 50000 | Werktijd (uren): | 50000 |
---|---|---|---|
Tipe van de post: | Van de LEIDENE het Licht Tuinvlek | Optioneel accessoire: | Spike of Base |

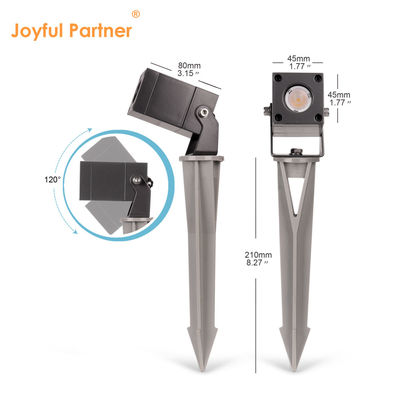

Lampgrootte: | 45 mm*45 mm*112 mm | Lichtbron: | 1*1W |
Markeren: | Vierkante LED-tuinspotlicht,Boom LED tuinspot licht,IP65 Buitengraslamp |
Artikelnummer
|
Lichtbron
|
Lensbundelhoek(°)
|
Verbruik(watt)
|
Ingangsspanning(V)
|
Ik-waarde
|
S83311
|
1*1W
|
8°/15°/20°/30°/45°/60°
|
1
|
DC12V/DC24V
|
2
|
S83311H
|
1*1W
|
8°/15°/20°/30°/45°/60°
|
1.3
|
AC100-240V
|
2
|
S83312
|
1*3W
|
8°/15°/20°/30°/45°/60°
|
3
|
DC12V/DC24V
|
2
|
S83312H
|
1*3W
|
8°/15°/20°/30°/45°/60°
|
3.5
|
AC100-240V
|
2
|
S83316
|
1*3W RGB3in1
|
30°/45°/60°
|
3.2
|
DC12V/DC24V
|
2
|
S83305COB
|
1*5W
|
15°/30°/45°
|
5
|
DC24V/100-240V
|
2
|

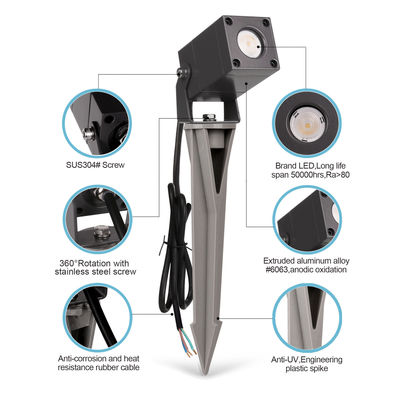

Materiaalspecificaties
|
|
|
Behuizing&Voorplaat
|
Geëxtrudeerde aluminiumlegering #6063, anodische oxidatie of buitenpoedercoating
|
|
Glas
|
Gehard glas.T=3mm
|
|
Lens
|
Optische lens, efficiëntie≥85%
|
|
Kabelwartel
|
IP68, PG9 nikkel gecoat koper
|
|
Pakking
|
Gevormde afdichting
|
|
LED
|
Epistar of CREE, Ra>80
|
|
PCB
|
Uitstekende warmtegeleiding aluminium,
warmtegeleidingscoëfficiënt≥2.0w/mk |
|
Driver
|
Constante stroomuitgang
éénkleurige LED=1-circuit uitgang RGB 3in1 LED=3-circuit uitgang |
|
Bedrijfstemperatuur
|
(-20℃~40℃)
|
|
Stroomkabel
|
H05RN-F2*0.75mm²L=1m(lage spanning)
H05RN-F3*0.75mm²L=1m(hoge spanning) H05RN-F4*0.75mm²L=1m(voor RGB) |
|
Spike
|
PVC
|
|
Optionele accessoires
|
Honingraat
|
|
|
Antiverblindingskap (aluminium)
|
