Productdetails:
|
| Kleurtemperatuur (cct): | 2700k-6500k | Dienst verlichtingsoplossingen: | Projectinstallatie |
|---|---|---|---|
| Levensduur (uren): | 50000 | Productgewicht (kg): | 0,95 |
| Garantie (jaar): | 2 jaar | Ingangsspanning (V): | AC 100V-240V |
| Cri (ra>): | 80 | Materiaal lampbehuizing: | Roestvrij staal |
| IP-classificatie: | IP67, IP67 waterdicht | Sollicitatie: | Stap, trap, dek, boot, vochtige omgeving |
| Artikeltype: | geleid ondergronds licht | vorm: | Ronde |

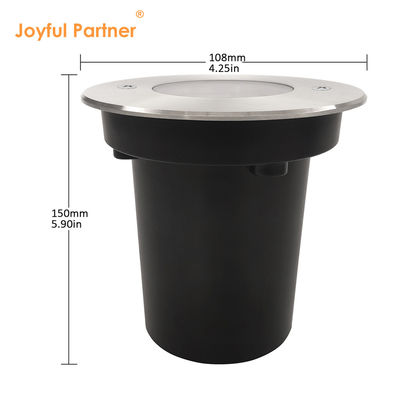

| Lampgrootte: | Dial 108 mm*H.90 mm | Glas: | 8 mm gehard stappenglas |
| OEM&ODM: | beschikbaar | Stroom: | 3 Watt |
| Certificaat: | CE, ROHS, EMC | Efficiëntie van de lens: | ≥85% |
| Transportpakket: | Schokbestendige kartonnen doos | Haven: | Guangzhou/Shenzhen |
| Markeren: | 3W LED-ondergrondlicht,LED ondergrondse verlichting 3000k,Buitenverlichting in de grond |
||
|
Artikelnummer
|
Lichtbron
|
Lens straalhoek(°)
|
Verbruik(watt)
|
Ingangsspanning(V)
|
Ik-waarde
|
|
82531(S/H/AS)
|
3*1W LED
|
8°/15°/25°/30°/45°/60°
|
3.2
|
DC12V/DC24V/AC100-240V
|
9
|
|
82632(S/H/AS)
|
3*3W LED
|
8°/15°/25°/30°/45°/60°
|
9
|
DC12V/DC24V/AC100-240V
|
9
|
|
82533(S/H/AS)
|
3*1W RGB LED
|
8°/15°/25°/30°/45°/60°
|
3.2
|
DC12V/DC24V
|
9
|
|
82634(S/H/AS)
|
3*3W RGB LED
|
8°/15°/25°/30°/45°/60°
|
8
|
DC12V/DC24V
|
9
|
|
82636(S/H/AS)
|
3*3W RGB3in1 LED
|
25°/30°/45°/60°
|
9
|
DC12V/DC24V
|
9
|
|

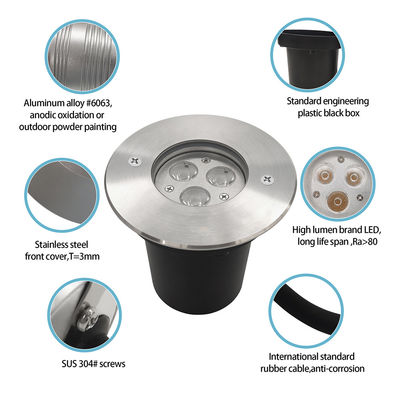

Materiaalspecificaties
|
|
|
|
Behuizing
|
Geëxtrudeerde aluminiumlegering #6063, anodische oxidatie of buitenpoedercoating
|
|
|
Voorkant
|
304# of 316# Roestvrij staal
|
|
|
Lens
|
Optische lens, efficiëntie≥85%
|
|
|
Glas
|
Gehard glas.T=8mm
|
|
|
Pakking
|
Gegoten siliconen dubbele afdichting
|
|
|
Bedrijfstemperatuur
|
(-20℃~40℃)
|
|
|
Stroomkabel
|
H05RN-F2*0.75mm²L=0.5m(laagspanning)
H05RN-F3*0.75mm²L=0.5m(voor enkele kleur/hoogspanning) H05RN-F4*0.75mm²L=0.5m(voor RGB) |
|
|
Montagehuls
|
ABS
|
|
|
Optionele accessoire
|
Honingraat
|
|
